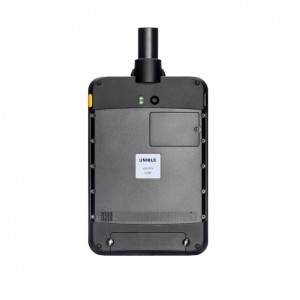

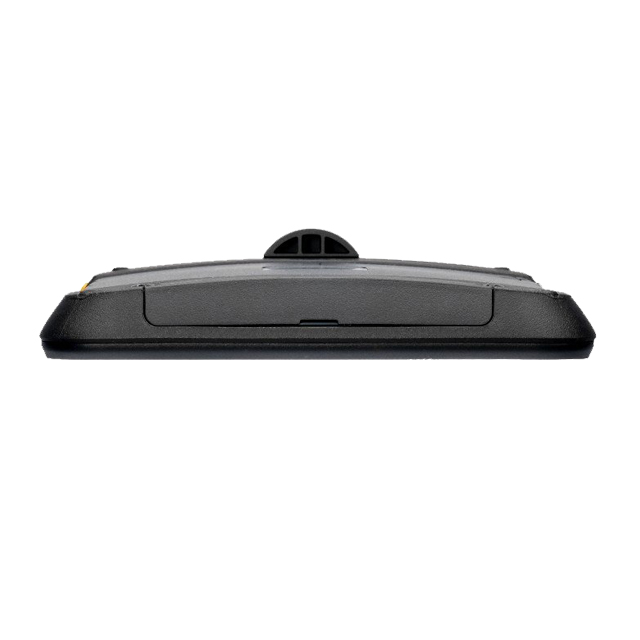

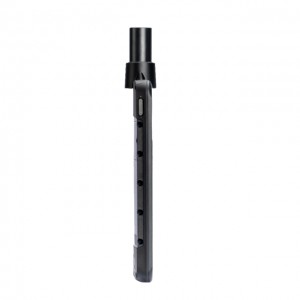

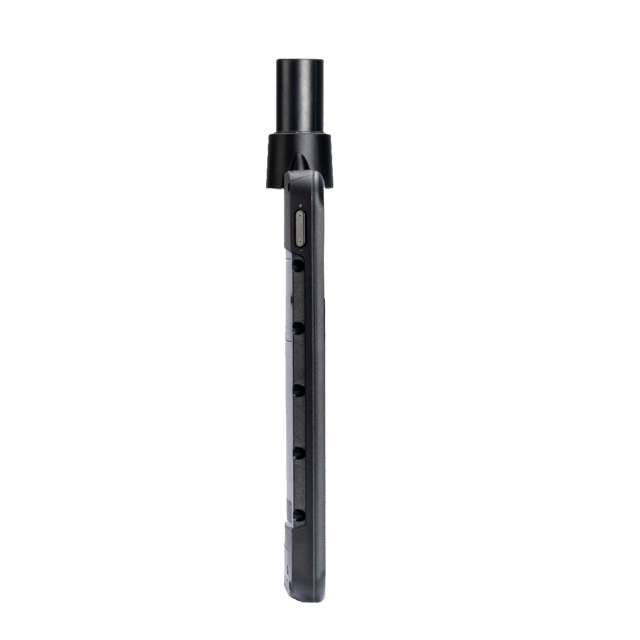

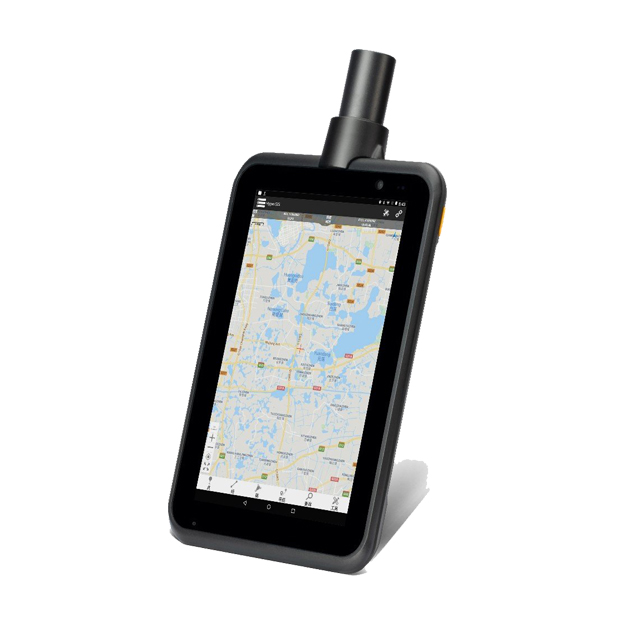

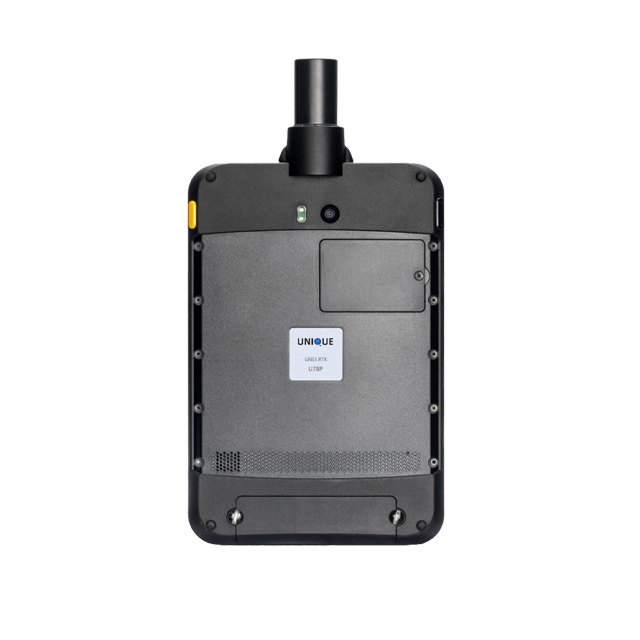

Android GNSS RTK Tablet U78P
Short Description:
Features 1.Built-in ublox ZED F9P module ，providing centimeter level data acquisition accuracy 2.High resolution 8-inch display for outdoor use in the sun 3.More convenient 5-point capacitive touch screen input 4.Designed with front 5MP, rear 13mp dual camera 5.Accessible by WLAN, Bluetooth, LTE 4G, NFC and other data transmission links 6.Industrial protection, IP65 protection, 1.2m drop protection, MIL-STD-810G compatible 7.Internal metal frame design, independent battery compartment, str...
Features
1.Built-in ublox ZED F9P module ，providing centimeter level data acquisition accuracy
2.High resolution 8-inch display for outdoor use in the sun
3.More convenient 5-point capacitive touch screen input
4.Designed with front 5MP, rear 13mp dual camera
5.Accessible by WLAN, Bluetooth, LTE 4G, NFC and other data transmission links
6.Industrial protection, IP65 protection, 1.2m drop protection, MIL-STD-810G compatible
7.Internal metal frame design, independent battery compartment, stronger and safer
8.Field replaceable large capacity lithium battery, working time can be more than 8 hours
Specification
| Model | U78P |
| GNSS module | ublox ZED F9P |
| Standalone | 1.5m |
| RTK | 5cm |
| System | |
| CPU | Quad Core ARM Cortex-A53 1.3GHz |
| Operating System | Android 7.0 |
| Memory | 3GB LPDDR2 |
| Flash | 16 GB eMMC (32 GB option) |
| LCD Display | |
| Size Type | 8” TFT LCD |
| Resolution | 1280 x 800 |
| Brightness | 400 nits |
| Touch Screen | 5 points capacitive touch (PCT) |
| Peripherals and Devices | |
| Camera | Front: 5M |
| Rear: 13M AF with Flashlight | |
| Sensor | Magnetometer (M-Sensor/E-Compass) |
| Accelerometer (G-sensor) | |
| Gyroscope | |
| Ambient light sensor | |
| Barometer | |
| Barcode Scanner | Optional |
| Audio & Vibrator | 1 x built-in microphone |
| 1 x built-in speaker (1.5W) | |
| 1 x vibrator | |
| Wireless | |
| WLAN | Integrated IEEE 802.11 a/b/g/n |
| Bluetooth | Bluetooth 4.1 (BLE, HS compliant) |
| WWAN (ME909s-120) Optional 1 | 2G GSM/GPRS/EDGE (Band 850 / 900 / 1800 / 1900) |
| 3G WCDMA (Band 1,2,5,8) | |
| LTE (Band 1,2,3,4,5,7,8,20) | |
| Navigation | GPS/Glonass |
| ublox ZED F9P | |
| NFC | ISO 15693 ; ISO 14443A ; ISO 14443B, B’ ; ISO 18000-3 ; NFC Forum Type1-4 Tag ; Kovio |
| I/O Interface | |
| USB Port | 1 x micro USB 2.0 port High Speed / OTG Compatible. |
| SD Slot | 1 x microSD card slot (SD up to 64GB) |
| SIM card | 1 x micro-SIM (3FF) socket supporting 2G/3G/LTE |
| Pogo pin | Extra power pins for vehicle bracket ; 5V/2A |
| Power Supply | |
| Battery Type | Lithium-ion rechargeable battery ,field replaceable |
| Battery Capacity | Typical 3.8V, 6200mAh |
| Adapter | |
| Adapter Input | AC 100~240V 50~60 Hz |
| Adapter Output | 5V/2A |
| Mechanical | |
| Ingress Protection | IP65, 1.2m drop |
| Environmental | |
| Operating Temperature | -10°C ~ 55°C (14°F ~ 131°F ) |
| Storage Temperature | -20°C ~ 65°C (-4°F ~ 149°F) |
| Operating Humidity | 5% ~ 95% RH |
| Dimensions(mm) | 220 x 147 x 20.9 mm |
| Weight | 550g (1.22lb) (with battery) |
| Key | |
| Power | YES |
| Volume | YES |
| Function | Free for your assigned function |
