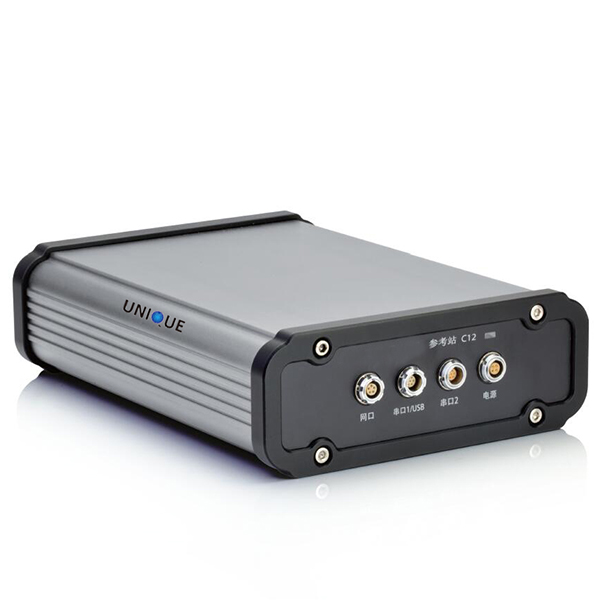

GNSS Receiver C12T
Short Description:
Applications The C12 CORS features rugged, flexible, compatible and good expansion.Supporting SC90E multiple-system choke antenna and HT-NET software, it supports mainstream RTK model algorithm and is compatible with other equipments of reference stations and rovers, providing a single station CORS, VRS and other multi-system solutions. With advanced aviation plug connectors, aluminum casing and cooling system, the problems of heat and shock etc are effective solved. Widely used in land surve...
Applications
The C12 CORS features rugged, flexible, compatible and good expansion.Supporting SC90E multiple-system choke antenna and HT-NET software, it supports mainstream RTK model algorithm and is compatible with other equipments of reference stations and rovers, providing a single station CORS, VRS and other multi-system solutions.
With advanced aviation plug connectors, aluminum casing and cooling system, the problems of heat and shock etc are effective solved.
Widely used in land survey, reference stations, aircraft inbound, deformation monitoring, precision agriculture, aerospace and other areas.
|
Model |
C12T(BD970) |
|
Overview |
|
|
System |
Linux 2.6.32 |
|
Processor |
32bits ARM9 |
|
Web Server |
Support |
|
LED Indicator |
Support |
|
CORS Software |
eCORS |
|
Internet Access |
Support |
|
Series port |
Support |
|
GNSS Antenna |
TNC Interface |
|
Housing Material |
Aluminium Alloy |
|
Size |
210mm×160mm×58mm |
|
Weight |
1500g |
|
GNSS Specifications |
|
|
GPS |
L1 C/A, L2E, L2C, L5 |
|
GLONASS |
L1 C/A, L1 P, L2 C/A, L2P |
|
BDS |
B1,B2 |
|
SBAS |
L1 C/A, L5 |
|
GALILEO |
L1 BOC, E5A, E5B, E5AltBOC |
|
QZSS |
L1 C/A, L1 SAIF, L2C, L5 |
|
Channels |
220 |
|
DGPS |
<1m |
|
SBAS |
Horizonal: <1m |
|
RTK Position |
Horizonal:±8mm RMS |
|
Data update rate |
50Hz |
|
Data protocol |
CMR, CMR+,sCMRx, RTCM 2.x, RTCM |
|
Initialization Time |
3.0 |
|
Initialization Reliable |
>99.9% |
|
Power |
|
|
Input Voltage |
12V, 1A |
|
Environment |
|
|
Work Temperature |
-30°C~+75°C |
|
Storage Temperature |
-40°C~+85°C |
|
Work Humidity |
5%~95%(Non-Condensing) |
|
Accessories |
|
|
Standard Accessories |
Power cable x1: Series port cable x1: 10/100M RJ45 network cable x1 |
